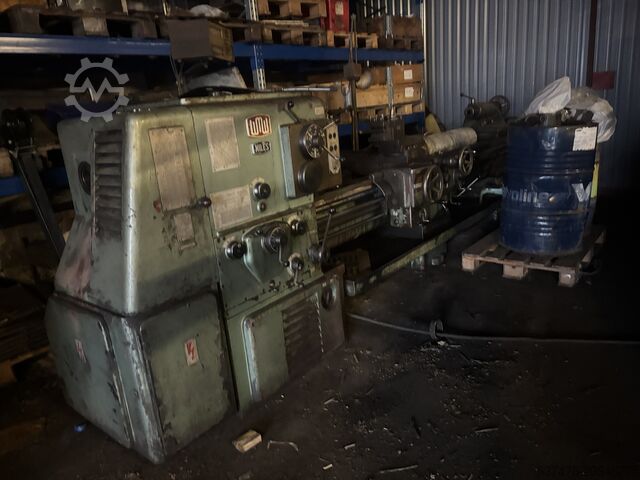

LATHE TECHNICAL SPECIFICATION – PERFORMANCE OVERVIEW
Workpiece Capacity

Turning diameter over bed (nominal / max): 630 mm / 660 mm

Turning diameter over carriage:

Short slides: 400 mm

Long slides: 320 mm

Max. swing in front of faceplate notch: 720 mm

Notch length: 265 mm

Over bed: 305 mm

Over floor: 1125 mm

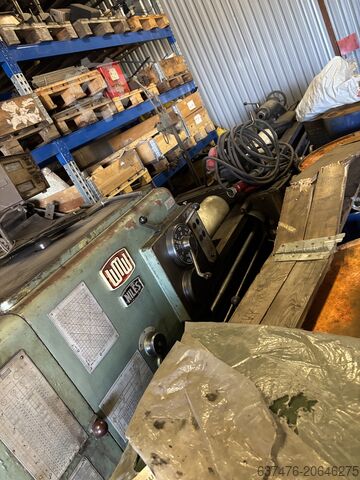

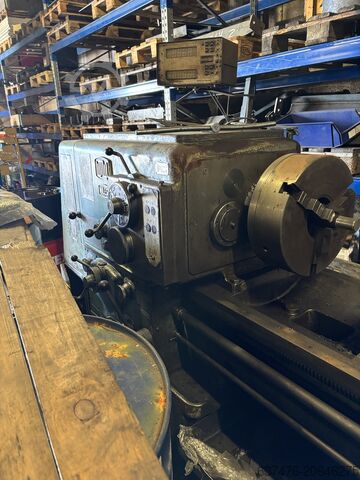

Machine Construction & Spindle System

Bed width: 550 mm

Spindle bore: 72 mm

Faceplate:

Diameter: 630 mm

Width: 120 mm

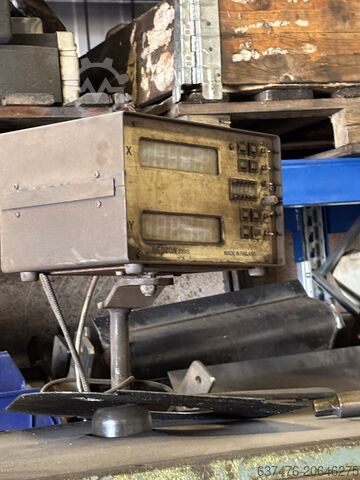

Tooling & Setup

Tool cross-section (cutter): 40 × 40 mm

Tool holder side length: 200 mm

Spindle & Drive Performance

Main motor speed: 1400 rpm

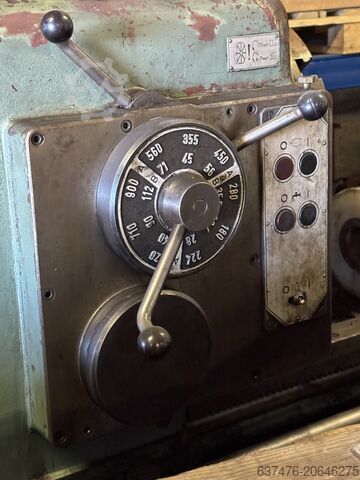

Spindle speed steps: 18

Max. permitted faceplate speed: 560 rpm

Feed Ranges

Longitudinal feeds:

Steps: 68

Range: 0.035–10 mm/rev

Cross feeds:

Steps: 68

Psdbjx Acpdol Iubcepr
Range: 0.014–4 mm/rev

Rapid Traverse Rates

Longitudinal: 5000 mm/min

Cross travel: 2000 mm/min

Thread Cutting Capability

Metric threads:

84 types, 0.2–224 mm

Inch threads:

94 types, 140–1/8 TPI

Module threads:

72 types, 0.1–112

Pitch range:

94 types, 280–1/4

Machine Dimensions

Overall length: 2300 mm + distance between centers

Width: 1850 mm

Height: 1725 mm

Ask for a testing video !
