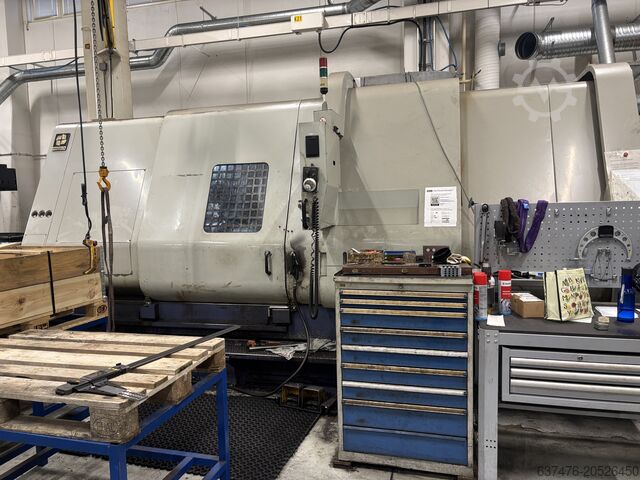

For Sale: Hwacheon HI45 ECO (Year 1999) – Heavy-Duty CNC Lathe with 2m Turning Length
Available for sale is a robust and reliable Hwacheon HI45 ECO, year 1999. This machine is designed for medium to heavy-duty turning applications, offering excellent rigidity, strong spindle performance, and a large turning capacity.
Hwacheon is well known for high mechanical quality and long-term durability. The HI45 ECO is one of their respected heavy-class models, built to withstand demanding industrial production. The solid construction and FANUC control make this a dependable, long-lasting production lathe.
This machine is ideal for shafts, large-diameter components, flanges, long turned parts, and general heavy machining.
FCA Kiinteä hinta alv 0% (veroton)
Alkuperäinen hinta oli: 27 000 €.25 000 €Nykyinen hinta on: 25 000 €.
Koneen tyyppi
CNC-sorvi
Valmistaja
Malli
HI45 ECO
Valmistusvuosi
1999
Kunto
hyvä (käytetty)
Toiminnallisuus
täysin toimintakuntoinen
Sijainti
Key Features
Heavy-duty construction – machine weight 15,000 kg
Large turning capacity: Ø800 mm swing over bed
Up to 2,000 mm turning length
Powerful 37/30 kW spindle motor
Strong 12-station turret
FANUC 18TC control – reliable and easy to operate
Excellent choice for demanding industrial production

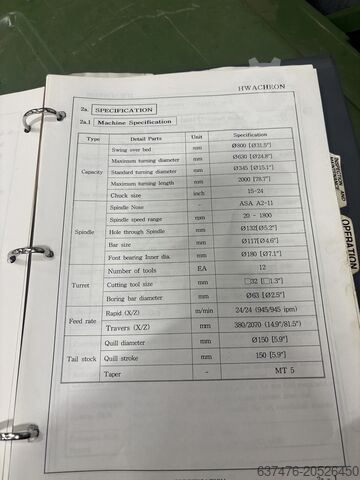

Technical Specifications
Capacity
Swing over bed: Ø 800 mm (31.5″)
Maximum turning diameter: Ø 630 mm (24.8″)
Standard turning diameter: Ø 345 mm (15.1″)
Maximum turning length: 2000 mm (78.7″)
Spindle
Nlsblnmzexwqnwjtisa
Chuck size: 15″ – 24″
Spindle nose: ASA A2-11
Spindle speed range: 20 – 1800 rpm
Hole through spindle: Ø 132 mm (5.2″)
Bar capacity: Ø 117 mm (4.6″)
Front bearing inner diameter: Ø 180 mm (7.1″)

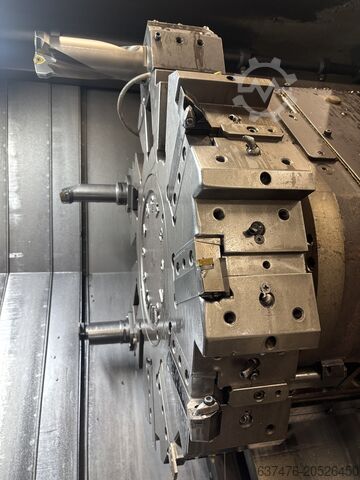

Turret
Tool stations: 12
Cutting tool size: □ 32 mm (1.3″)
Boring bar diameter: Ø 63 mm (2.5″)
Feed
Rapid traverse (X/Z): 24 / 24 m/min
Travels (X/Z): 380 / 2070 mm

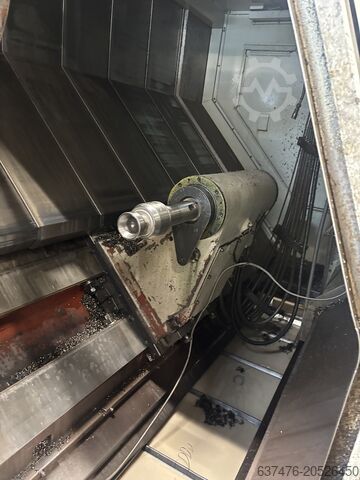

Tailstock
Quill diameter: Ø 150 mm
Quill stroke: 150 mm
Taper: MT5

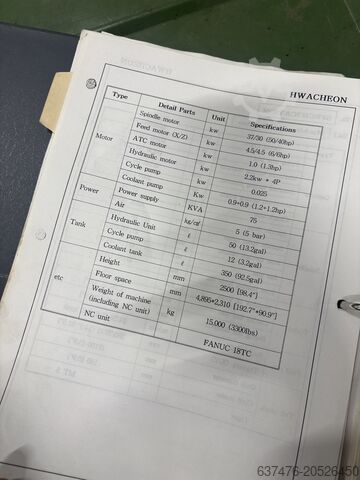

Motors
Spindle motor: 37 / 30 kW (50 / 40 hp)
Feed motors (X/Z): 4.5 / 4.5 kW (6 / 6 hp)
ATC motor: 1.0 kW
Hydraulic motor: 2.2 kW (4-pole)
Coolant pump: 0.025 kW
Power & Utilities
Power supply: 0.9 + 0.9 KVA
Air requirement: 75 kg/cm²
Tanks
Hydraulic tank: 50 L
Coolant tank: 12 L
Dimensions & Weight
Floor space: 2500 mm
Machine dimensions: 4895 × 2310 mm (192.7″ × 90.9″)
Machine weight: 15,000 kg (33,000 lbs)

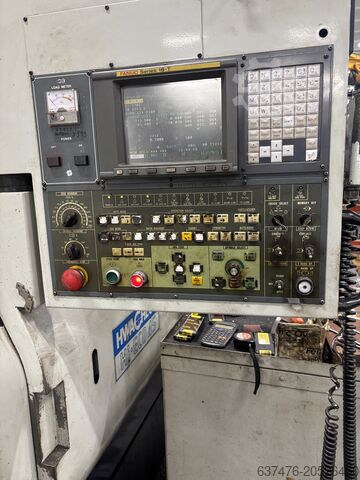

Control
NC unit: FANUC 18TC
