Technical Specifications (Model 120)
The system is built for heavy-duty use with the following specifications:

Boiler & Performance
Nominal Power: 120 kW

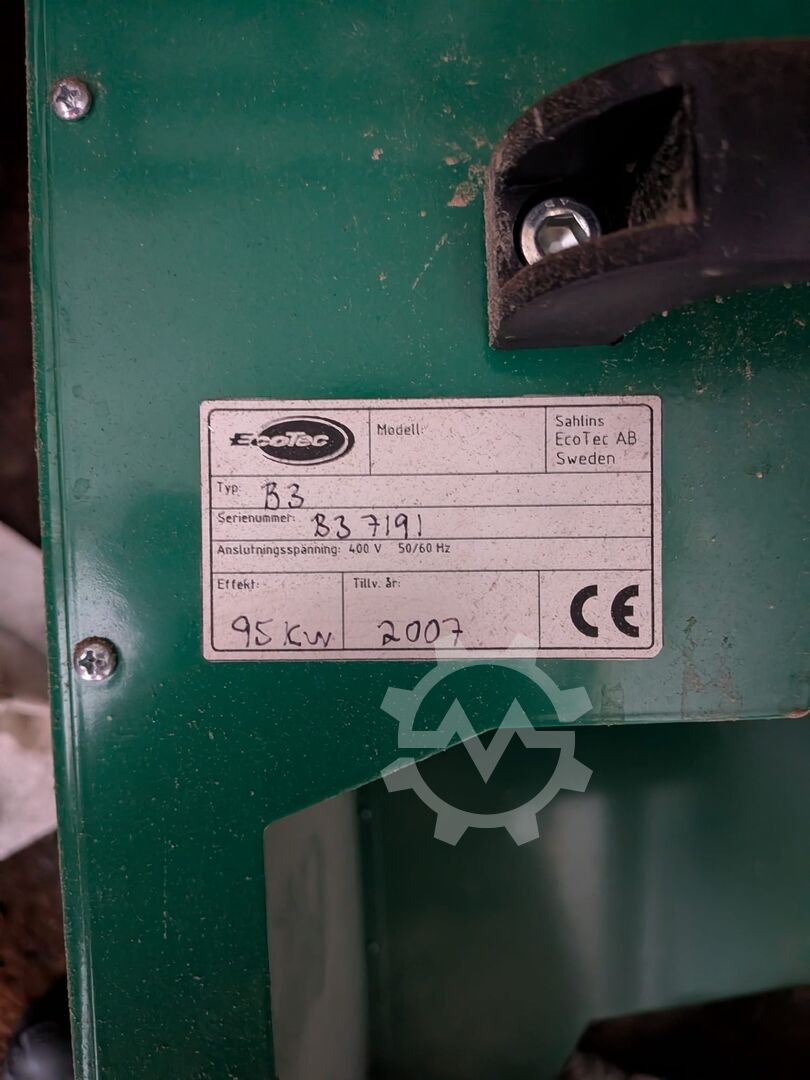

Burner: EcoTec B3 (95 kW nominal / compatible with 120 kW boiler)

Dry Weight: 1030 kg

Water Capacity: 450 l

Max Operating Pressure: 1.5 bar

Max Operating Temperature: 110°C

Material Thickness: 6 mm (Fire surfaces and water jacket)

Physical Dimensions
External Dimensions: 1485 mm (Depth) x 930 mm (Width) x 1410 mm (Height)

Firebox Dimensions: 650 x 650 x 1030 mm (Volume: 480 l)

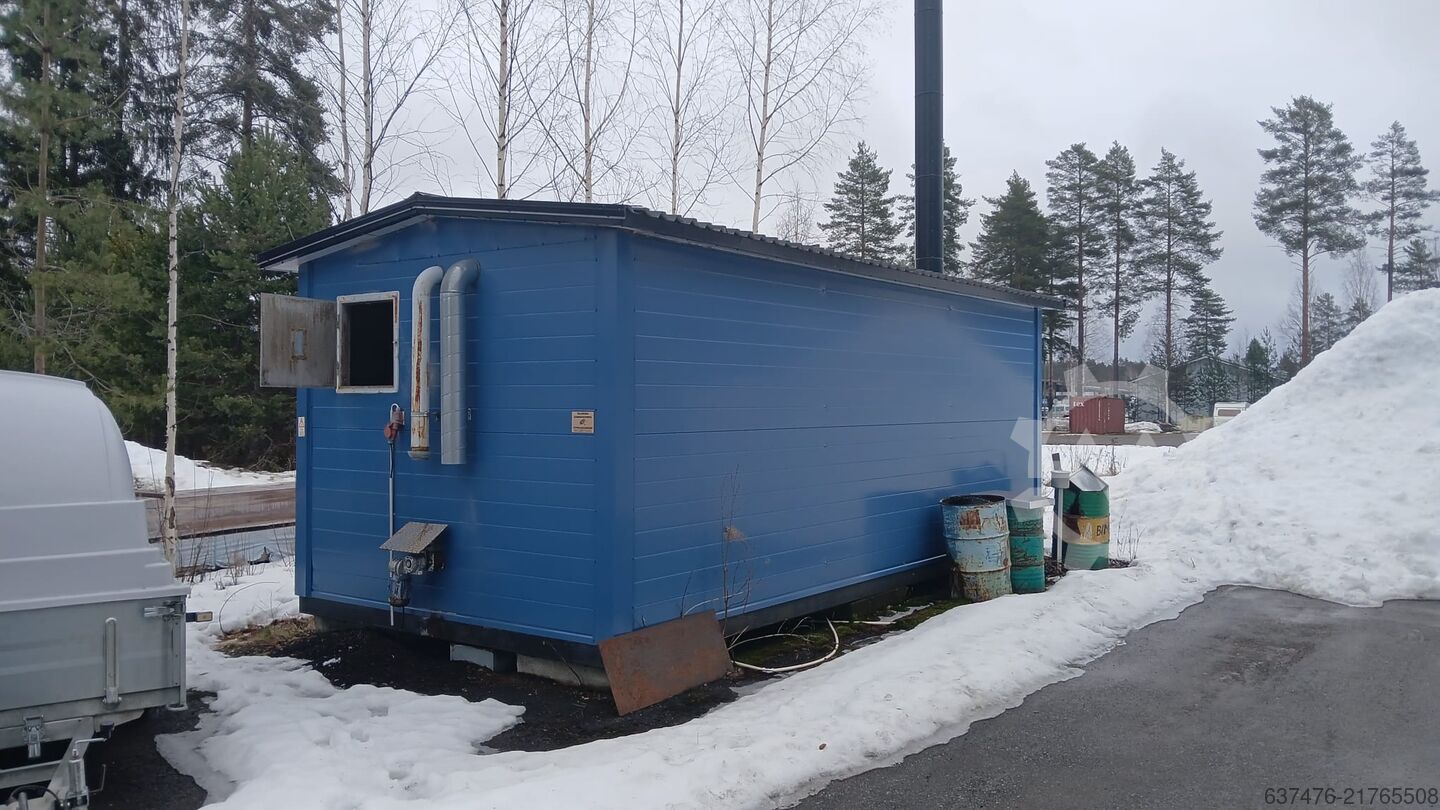

Container: Approx. 10 ft, blue, includes chimney stack and external fuel inlet.

Fuel & Chimney Requirements
Fuel: Wood pellets / bio-fuel (designed for under-feed technology).

Chimney Connection: 1060 mm height from floor, 160 x 220 mm flue size.
Nodbl Iuey Eipfebcswf

Chimney Recommendations:

Moisture < 20%: Ø 220 mm / 8 m height

Moisture > 20%: Ø 250 mm / 10 m height

Key Features
Turnkey Solution: No need for a dedicated boiler room. The 10ft container is ”plug-and-play” – just connect to your heating network and power.

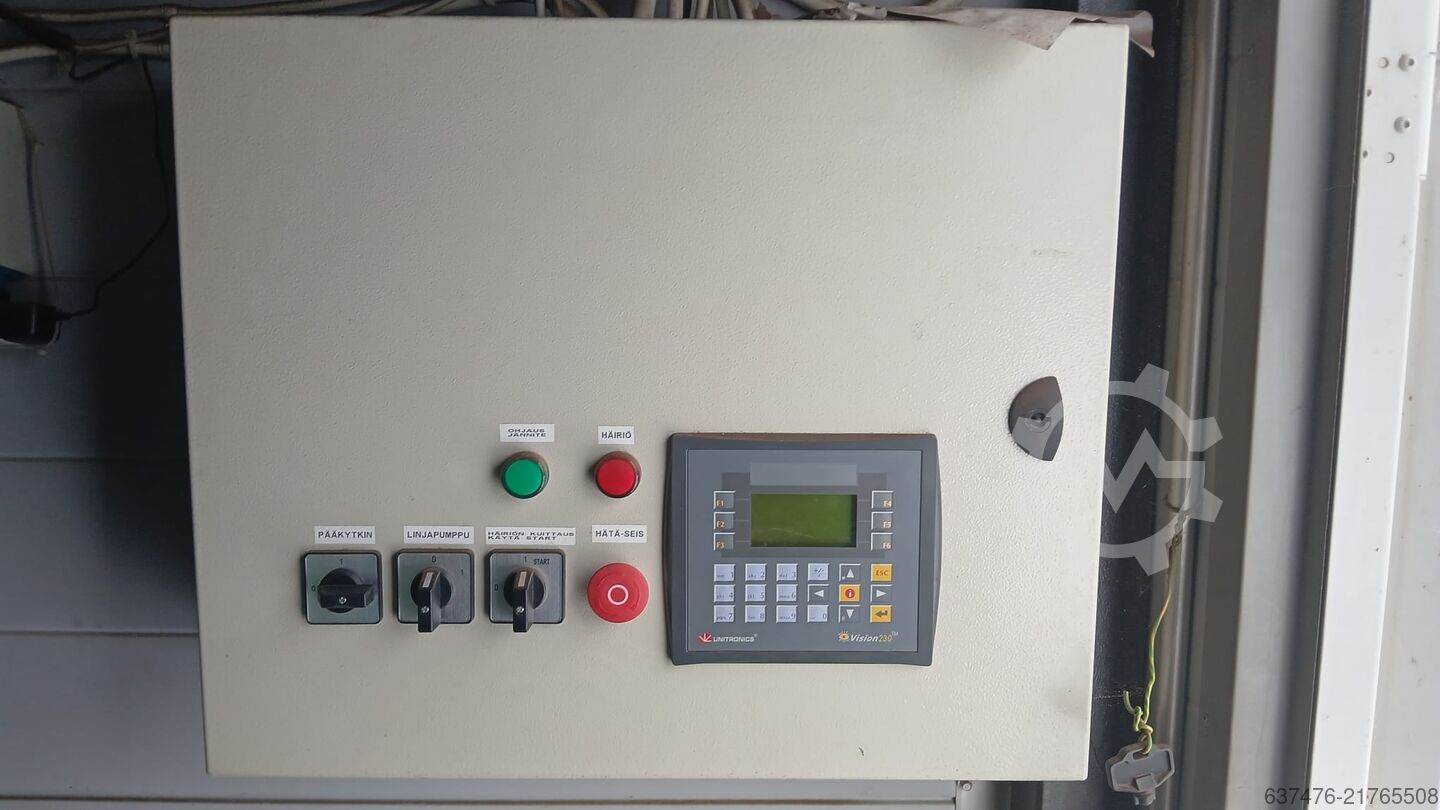

Professional Automation: Equipped with a Unitronics Vision230™ PLC controller and a clear control panel (Main switch, pump control, fault reset, and emergency stop).

Robust Construction: Heavy-duty Swedish engineering from Sahlins EcoTec AB (2007). 6mm steel ensures a long remaining lifespan.

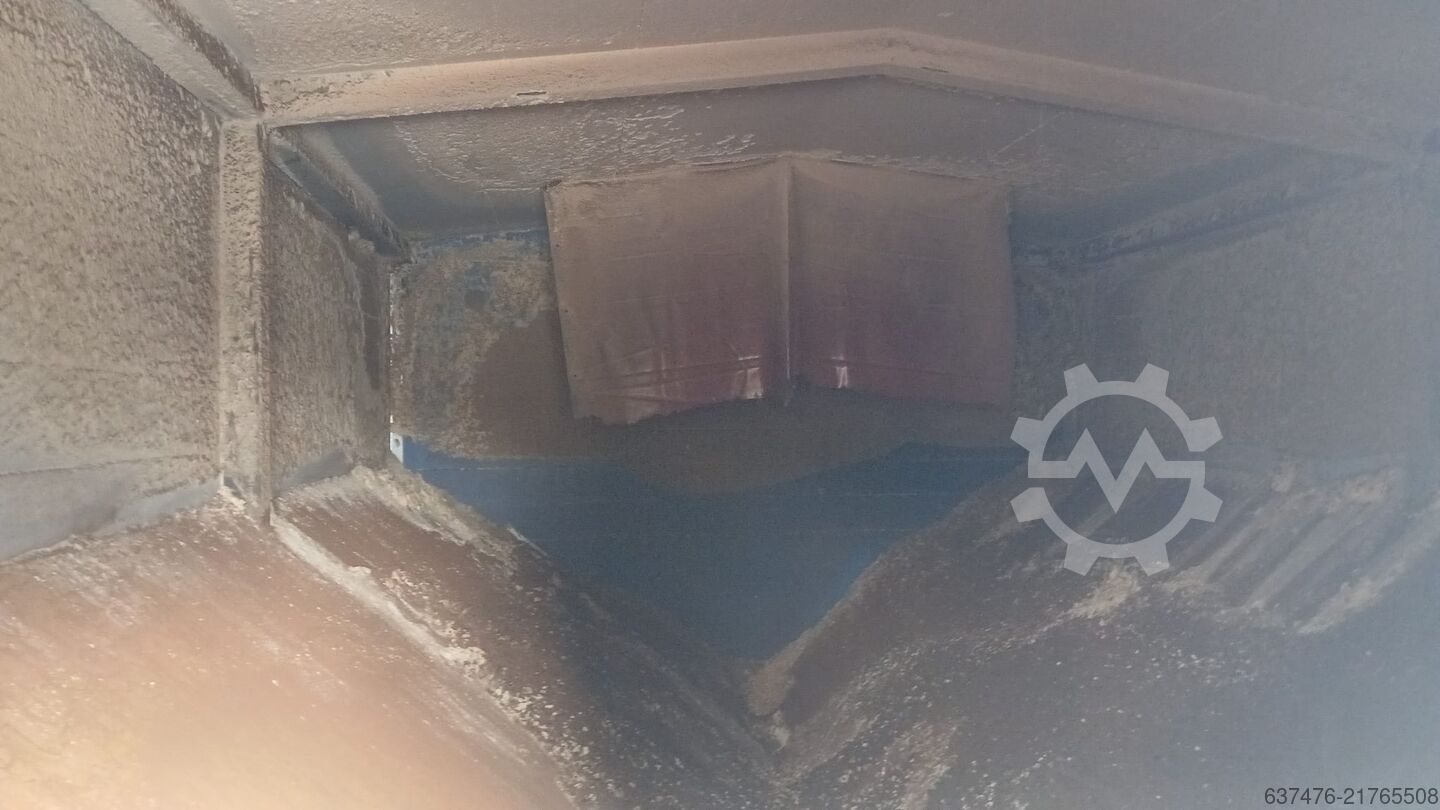

Large Fuel Bunker: Integrated internal V-shaped bunker with a heavy-duty feed screw for long autonomous operation.

Connections: 50 NS flow/return and expansion connections, 20 NS thermostat connections, and 2x 50 NS electric heater connections.

Sales Information
Condition: Well-maintained, complete system.

This is a rare opportunity to acquire a high-capacity, mobile heating plant at a fraction of the cost of a new system.
