1. Applications & Design

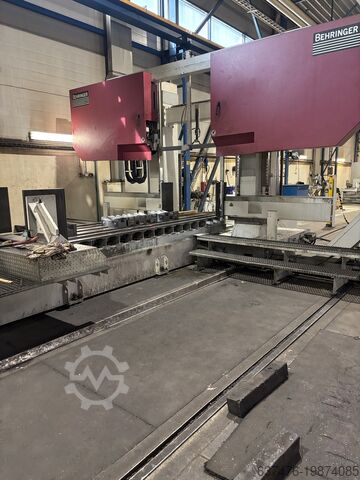

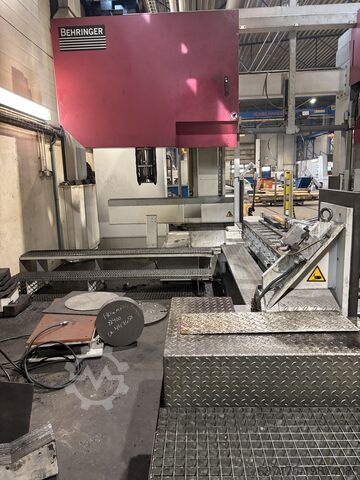

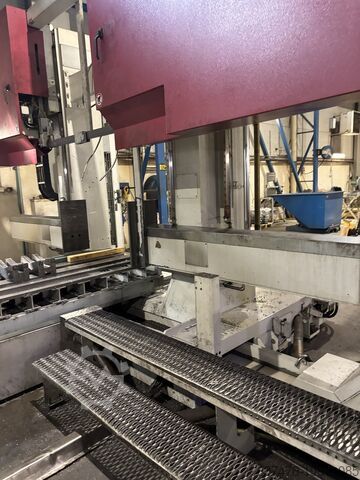

Designed as a horizontal bandsaw with table format, well-suited for operations in forges, rolling mills, die casting plants, steel finishing shops, and tool & mold making environments.
Behringer
DirectIndustry

Its low table height allows placement at standard hall floor level, easing material handling.
Behringer
DirectIndustry

2. Cutting Capacity

Cutting range for round material (90°): up to 1,100 mm

Cutting range for flat material (90°): up to 1,100 × 1,100 mm
(Equivalent to approximately 43.3 × 43.3 inches)
Behringer
Behringer Saws
Begner

3. Performance & Drive System

Drive power: 15 kW

Saw blade speed: Adjustable between 8 – 84 m/min

Total installed power: 30 kW
Behringer

Saw blade dimensions: 14,330 × 80 × 1.6 mm
Behringer

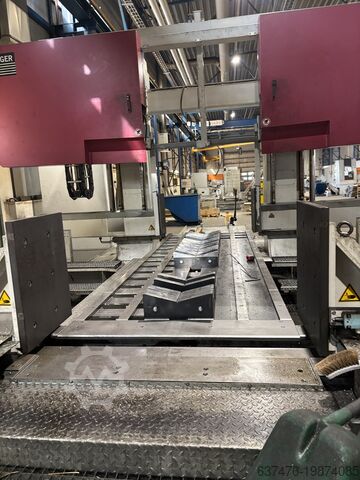

4. Table Specifications

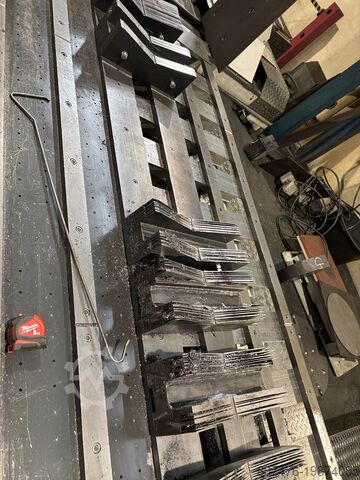

Table size (Length × Width): 3,000 × 1,500 mm

Maximum table load capacity: up to 30,000 kg
Behringer

Workpiece support height: 700 mm
Behringer

5. Machine Footprint & Weight

Overall length: approximately 6,000 mm

Width: about 8,100 mm

Height: roughly 3,850 mm

Machine weight: around 16,000 kg
Behringer

6. Notable Features & Options

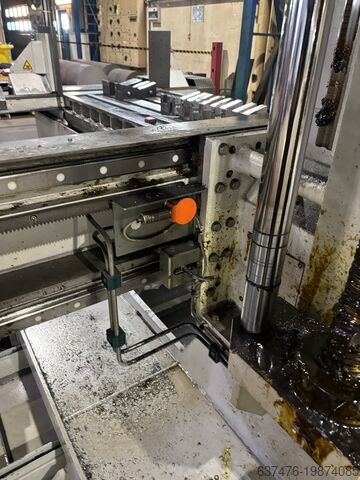

Independent traversable clamping system: Both the material clamping vice and blade guide arms can move independently, allowing large or bulky pieces to be secured without manual repositioning to a fixed side
Behringer
DirectIndustry

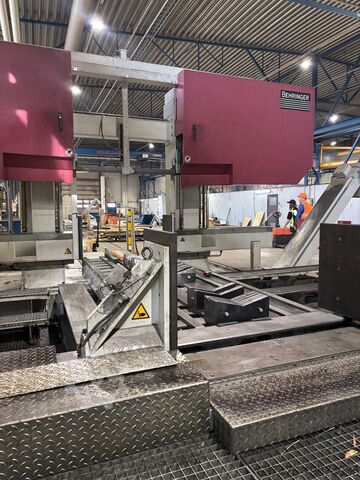

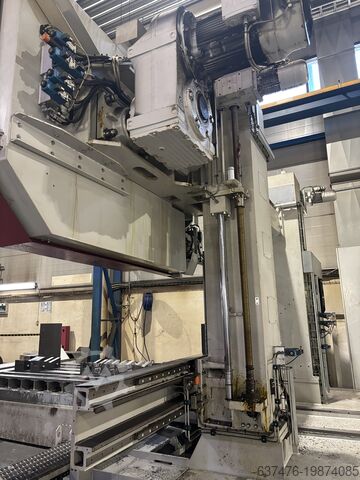

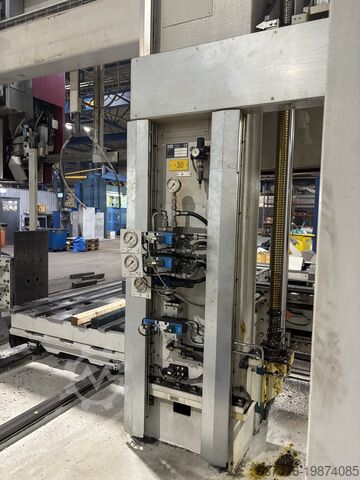

Robust gantry (portal) frame: Two solid columns and support bars ensure excellent stability, load capacity, low vibration, and long service life
Behringer
Behringer Saws

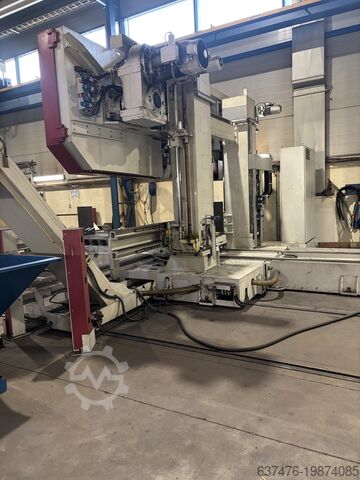

Optional 90° rotating blade guide: Enables both vertical and horizontal cutting, useful especially for notching sample materials
Behringer
DirectIndustry

Pgodblsw Tulgo Iubcek
Powered duplex chip brushes: These automatically adjust to clean the saw blade continuously, improving tool life and reducing brush wear
Behringer

Integrated chip conveyor with coolant tank: Located beneath the cutting zone; it collects chips and coolant, and can be pulled out for easy cleaning

Easy maintenance through open design: All wear parts and components are readily accessible, simplifying maintenance, blade changes, and repairs; also, installation does not require foundation work
